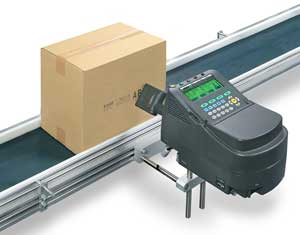

Ink Jet Printer JET HQC

PC coder JET HQC debut in the market at low price !

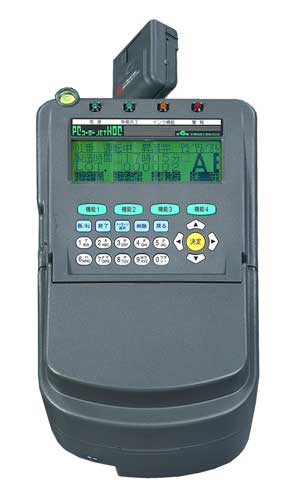

▼JET HQC operation key

Easy to see a screen panel and to operate

<Features>

Light-weight compact body to pursue "Easy to use for anyone"

(1) Large and clear indication characters thanks to installing graphic liquid crystal screen.
(2) Large-sized colored buttons and easy-to-understand symbols make it easy to edit information to be printed.
(3) All-in-one design enables to store its accessories compactly in a body.
(4) Compact design enables to be equipped to an existing line at later time.


Though attractive price, HQC is fully equipped with abilities wanted for an existing ink jet printer.


(1) Simple to operate for anyone due to a few technical terms.
(2) A level equipment installation enables to confirm its level.
(3) By printing start order and 3 output signals able to connect outside equipments, possible to link neighboring system.
(4) Data is safely backed up by connecting with a personal computer for just in case (communication cable, software - necessary) - thus, this can be used with ease.
(5) Connection of those 2 HQCs to communication cable enables data copy between equipments.
(6) Numbering, auto calendar and expiration date printing functions are installed.


Reliable in-house development system


(1) Installation of in-house printhead provides with reliability.
(2) We developed in-house ink. "protection system not to make mistake in putting different color ink in different vessel" is applied.


JET HQC is very easy adjustable by yourself.


Specifications
Printing method Piezo ceramics drive drop on demand
Nozzle alignment 32 nozzle 2hole/nozzle
Letter height 1-20mm(at slant control) 25.4mm (when vertically)
Letters Alpha-numeral, katakana, kanji (48 letters)
Font design Gothic
Font Half dot (16x16) full dot (32x32)
Greatest speed line 200m/min.(density 1) 33m/min.(density 9)
Number of heads 1
Ink eject direction Sideway only
Printing lines 1 line / 2 lines
Printing objects Corrugated cardboard, paper, wood, other poromeric materials
Work search Head-part photoelectric sensor outside photoelectric sensor
Number of Chinese characters installed 48 letters
Number of registered messages 10 messages
Date/time printing ability year (dominical year), month, date, hour (24h/12h), minute, corresponding to free format Possible to set offset value
Numbering capability Maximum 8 lines, upping, corresponding to carried figureset
External output points 3 points (preparation ready/low ink /alarming)
Use environment 5-35 10%-80%RH (no dew condensation)
Power AC100V (plus & minus)10% 50/60HZ 40W(MAX)
Grounding Dkind - reaching ground
