Assembling example of Ink Jet Printer


Examples of special units of Ink Jet Printer

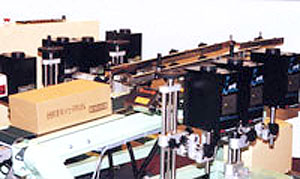

yExample1zWidth adjustable Conveyer unit

ƒPrint both sides of many kinds of boxes„


œWidth can be adjusted steplss with JET HQ Series print head on both sides and conveyer guide are these center.
œLevel can be changed easily by only one handle.



bar code printing system

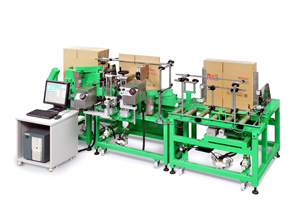

yExample 2zBar code printing system

ƒPrint bar code on exterior carton package„

œPrint company's name, product name, number and bar code on exterior carton package.
œJET HQ series is used.
œPigment type ink is used for precise reading.

šPage Top

printing system on side of rolled paper at paper factory.printing system on side of rolled paper at paper factory.
yExample 3zPrinting system on side of rolled paper at paper factory.

ƒPrint product class, number and rolling direction on the side of the roll„

œPrint product class, number and rolling direction on the side of the paper such as one for news paper rolled and cut at the factory.
œJET HQM is used.
œTwo printing method is available. One is to print while rolling the rolled paper. The other is to slide JET HQM on staying rolled paper

šPage Top
HQS head moving system

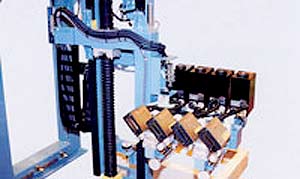

yExample 4zHQM head moving system

ƒPrint large objects by sliding heads„

œWhen object is large, printing is done by sliding printer head in stead of object.
œDistance between head and objects is adjusted by moving head back and forth. Printing is done by sliding head transversally.

šPage Top

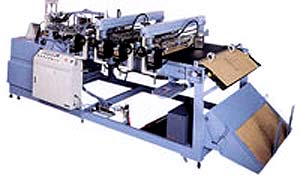

yExample 5zPrinting system on carton box before fabrication

ƒPrint production etc. on carton box before fabrication„

œPrint company name, product name, number, or lot number etc. on plane carton box before fabrication.
œStamper and ink jet printer are used for printing.
œUsing plane carton box save trouble on managing
œJET HQ500,JET HQ256,JET HQ series

šPage Top

empty sack auto supplying and printing system with lifter
yExample 6zEmpty sack auto supplying and printing system with lifter

ƒAutomatic printing on empty sack„

œ150sacks can be set on stock table.
œEmpty sack is automatically supplied by vacuum pad and lifter and printed by multi heads JET HQM type.
œProcessing capability of maximum 20 sacks/mins
