Easy to operate — and much more.
A print inspection system packed with
advanced features.
Beyond character inspection — built-in barcode inspection, a large color touch panel, and advanced features designed for production lines.
Barcode inspection
After reading a barcode, the system compares it with the reference text. It supports barcode print-quality control and can also help detect mixed or incorrect packaging materials.

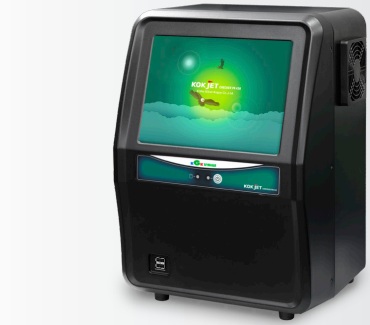

Large color touch panel
The 10.4-inch color touch panel makes it easy to find the required settings among numerous parameters. Most graphical controls are displayed on a single screen, enabling smooth setup and operation.
Printer synchronization
When used in combination with a KGK inkjet printer, the system supports start/stop control, product changeover, inspection text updates, numbering reset, and automatic synchronization of the system clock, helping to minimize human errors such as incorrect data entry.

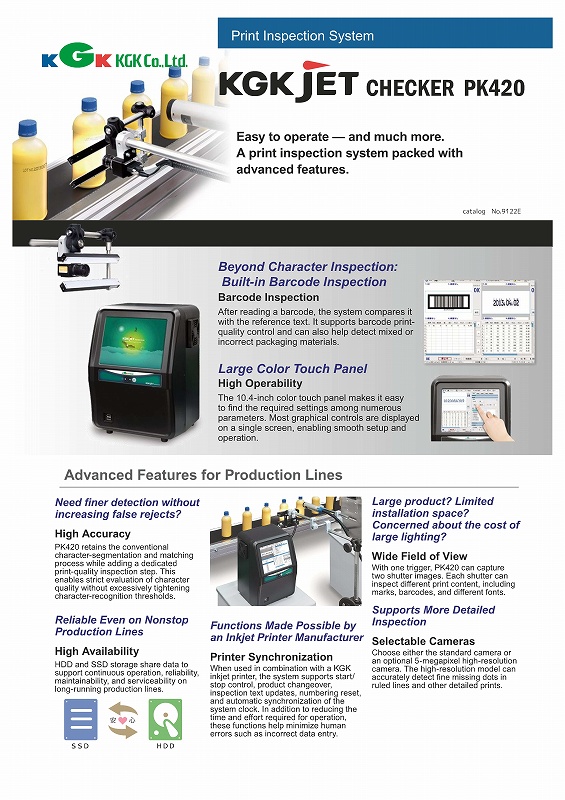

Download
| Registered Product Types | Max. 1,000 |
|---|---|
| Number of Cameras | 1–2 cameras. One camera can inspect two positions, subject to conditions. |
| Camera Resolution | Standard camera: 0.3 megapixels / High-resolution camera: 5 megapixels |
| Inspection Items | Wrong print, missing print, position shift, skew, presence/absence, missing dots, and print density |
| Inspectable Characters | Alphanumeric characters and up to 20 registered symbols; presence/absence inspection for other characters |
| Characters per Inspection | Max. 20 characters per inspection area; up to four inspection areas per camera |
| Date/Time Inspection | Conforms to KGK printer specifications |
| Numbering Inspection | Conforms to KGK printer specifications |
| Character Assignment | Conforms to KGK printer specifications |
| Barcode Inspection | ITF / JAN / CODE39 / CODE128 / QR / DataMatrix |
| Mark Inspection | Pattern matching using a registered image |
| Image Storage Capacity | Standard camera: up to 18 million images / High-resolution camera: up to 2 million images JPEG format |
| I/O Signals | Input: 16 points—product change, inspection disable, etc. Output: 12 points—OK/NG, running, processing, continuous NG, alarms, etc. |
| Interfaces | USB 2.0 × 4, RS-232C × 1 |
| Processing Speed | Standard camera: 70 ms per 10-character image High-resolution camera: 120 ms per 10-character image Performance varies depending on conditions. |
| Power Supply | AC 100 V ±10%, 50/60 Hz, 500 W Please consult us separately regarding AC 200 V. |
| Dimensions | 300 mm (W) × 261.2 mm (D) × 435 mm (H) Approximately 100 mm of rear clearance is required for camera-cable and other connections. |
| Operating Environment | 5–35°C, 20–80% RH, with no condensation |
