Handy type model
- ・Highly accurate resolution of 300 dpi
- ・Maximum print height of 32.4 mm
- ・Printing various barcodes, QR codes and other bar codes

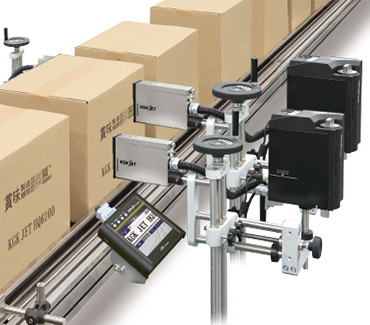

- ・A controller can control up to four printheads
- ・Simplified operation with the use of a touch panel
Download
| Printing system | Piezo ceramic driven DOD |
|---|---|
| Printing speed | As fast as 120m/min ＊ Depending on operating conditions |
| Nozzle arrangement | Nozzle arrangement: 300 dpi |
| Ink jetting directions | horizontal and downward |
| Print heigh | 32.4mm |
| Number of heads | up to 4 |
| Inks | Oil based black ink fluid |
| Printable characters | alphanumericals, symbols, Japanese Hiraganas, Japanese Katakanas and Japanese Kanjis of JIS I and II |
| Printing date and time | Western year, Japanese year, month, date, hour (12 or 24), minute, second and day of the week |
| Numbering | Up to 10 digits (counting up and down), repetition, increased value settable and zero supress |
| Bar codes | ITF、Code39、NW7、JAN、Code128、UPC、GS1Databar |
| 2D code | QR, Data Matrix, PDF417 |
| Operating conditions | 5 to 35 degrees C. and 10 to 80 RH % but withiout dew condensation |
| Graphics | BMP |
| Power source | 100V 50/60 Hz AC |
