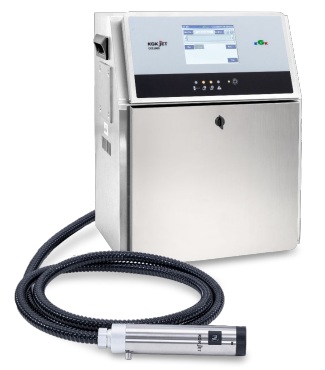

Continuous Inkjet Printer.
The KGK CIJ series new entry model. Improved expandability by terminal block configuration, while maintaining the same stability and reliability of KGK quality.
By limiting the types of ink that can be used, the number of parts has been reduced, making this a more affordable entry model.
Affordable pricing as entry model.
Fewer parts, lower cost, same reliability.
By limiting the types of ink that can be used, the number of parts has been reduced, making this a more affordable entry model.

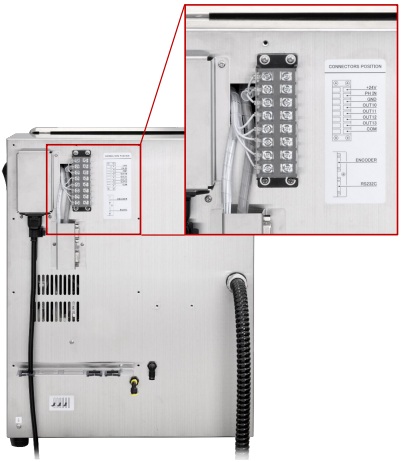

Terminal block is used for versatility.
The connectors used in the previous CCS series have been eliminated, making it easier to connect to external devices.

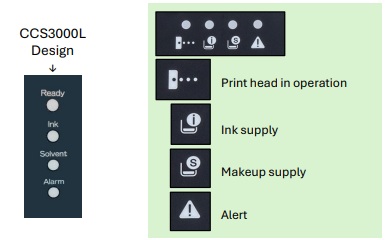

Display mark converted to pictogram.
Indicator signs have been converted into pictograms (print head in operation, ink supply, makeup supply, alert) to make it easier to identify the status.
Download
| Printing method | Continuous system (charge control system) |
|---|---|
| Compatible ink | Dye inks (For details, refer to "Ink compatibility table".) |
| Dust-& water-proof | IP24 |
| Certifications | RoHS |
| Screen size | 5.7” Color LCD / Touch Panel |
| Compatible Nozzle | 40μm / 50μm / 60μm |
| Print height | About 0.8 to 5 mm (40μm nozzle), About 1 to 10 mm (50μm nozzle), About 2 to 10 mm (60μm nozzle) (Depends on the distance from a workpiece, the print speed, and the ambient temperature) |
| Maximum print speed (5x5 dot font, 1 dot character spacing) |
2,500 ～ 3,200 characters/second (depends on nozzles and inks) |
| Character type | Alphabetical characters (uppercase/lowercase), numerical characters, symbols, Hiragana characters, Katakana characters, Kanji characters (JIS 1st and 2nd standard), Simplified Chinese characters (GB2312), user-defined characters |
| Number of printing lines and number of dots (vertical x horizontal) |
[1-5 lines] 5 x 5, 5 x N dots [1-3 lines] 7 x 5, 7 x 8, 7 x N dots [1-2 lines] 9 x 7, 9 x 9, 10 x 8, 12 x 10 dots [1 line] 16 x 12, 16 x 16, 24 x 18, 24 x 24 dots * 5 x N and 7 x N are proportional fonts. |
| Number of message characters to register | Up to 4096 characters |
| Number of messages to register | Up to 999 messages |
| Date/time (use-by-date) printing function | Function of assignment of Christian year, Japanese-style year, date, day of week, time (12/24-hour format), Julian date, serial week number in a year, early/middle/late part of month (variable period setting), AM/PM, shift code, and character assignment function (year, month, day, hour, minute, second, and day of week) to up to 4 to 15 other characters |
| Numbering function | Up to 10 digits, initial value setting, up/down, carry (1 count can be set at 1 to 9999 workpieces), zero suppress function (high-order zero is replaced with a space, or left-justified), numbering character assignment function (numbering can be assigned to other characters than numerical characters), base setting (binary number to base 36 number), separable (a character can be inserted between numerical characters) |
| Distance printing function | Up to 10 digits, separable (a character can be inserted between numerical characters) |
| Barcode printing function | ITF, Code39, NW7, EAN, Code128, UPC, Code93 |
| 2D code printing function | QR code and Data matrix |
| Japanese kana/kanji conversion function | Available |
| External Connections | Signal lamp, RS-232C, Encoder, USB stick memory |
| Data Input | Touch Panel, RS-232C communication |
| Communications function | RS-232C 1CH, up to 115,200 bps |
| Printhead cable length | 3.5m |
| Dry air source (for air purging in the printhead) |
<When not using air purge unit> Compatible tube outside diameter: 4 mm, Air source pressure: 0.1 MPa, Air flow: 1.7 L/min <When using air purge unit> Compatible tube outside diameter: 6 mm or 8 mm in diameter, Air source pressure: 0.8 MPa or less, Air flow: 10 L/min or less |
| Dimensions for installation | Main unit: 400W x 319D x 528H mm (excluding protrusions) Printhead: φ50mm x 197mm |
| Operating environment | Temperature: 0 to 40℃, Humidity: 10 to 85% (non-condensing) |
| Power | AC100-240V, 50/60Hz, 0.8A |
| Weight | 21Kg |
| Grounding | Grounding resistance < 100 ohms |
