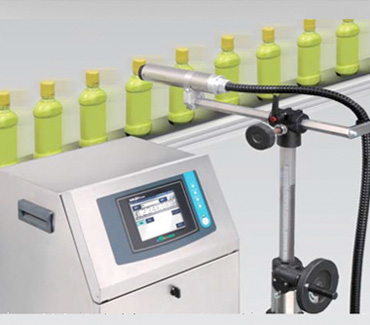

A Low-Cost High-Performance Inkjet Printer.
All functions in the economy model are substantial! Ink-jet printer of reliance because all developed in-house from the printer to ink.
We thought about usability.
Features a 5.7-inch full color panel with well thought-out usability and visibility.
Prevents incorrect inserting of ink or solvent.
Uses a cartridge system to prevent incorrectly inserting ink and solvent.
High-quality printing realized.
High-quality printing with a fluorine nozzle that prevents the nozzle from becoming dirty.
|Printing system||Continuous (charging control system)||Dustproof waterproof||Nothing|
|RoHS||Support||Screen size||5.7 color LCD / touch panel|
|Character height||1〜10mm||Character height||0.8-5mm (40-μm nozzle), 1-10mm (50-μm nozzle), 2-10 (60-μm nozzle)|
|The highest printing speed [characters/second] ( 5x5 dot fonts and 1character between)||1780-3200 (it changes with a nozzle type and ink type)||Character type||Alphabet (upper case/lower case), numbers, symbols, Japanese hiragana, katakana, kanji (JIS class 1and 2), the user characters|
|Message registration characters number||Maximum of 4096 characters||Date Time (expiry date) Printing function||Chritian year, traditional Japanese calender year, year/month/day, day of the week, time (12 / 24H format), Julian date, serial week number in a year, early/middle/late period of the month (variable period setting), AM / PM, shift code, character assignment function (to assign year, month, day, hour, minute, second, day of the week) to a maximum number of 4 to 15 digits of other characters.|
|Numbering function||Up to 10 digits, any initial value setting, up / down, carry of digit (can be set to 1 count in the work number from 1 to 9999), zero suppression function (replacing the zero of the high-order digits with space, or to eliminate it), numbering character assignment function (can be assigned to non-numeric characters), advance setting numbers (2 to 36 decimal) can be divided (insert any of the characters between the numbers).||Distance printing function||Up to 10 digits, can be divided (insert any of the characters between the numbers).|
|Bar code printing function||ITF, Code39, NW-7, JAN, Code128||Two dimensional code printing function||QR Code, data matrix|
|Kana-to-kanji conversion||Yes||External connection||Signal light, RS-232C, LAN, encoder, UPS, USB memory|
|Data input||Touch panel, RS-232C communication||Communication function||RS-232C 1CH maximum 115,200bps, Ethernet|
|Head cable length||3.5m||The source of dry air||Fit tube shape: ∅6mm or 8mm
Air source pressure: 0.8Mpa or less (air ventilation set included with the unit)
Air flow rate: less than 10L / Min
|Installation area (width x depth x height)||Main part: 370Wx330Dx535H (excluding projection)
|Use environment (temperature, humidity)||0-40℃(it changes with ink types), 10 to 85℅ (however, non-condensing)|
|Power supply||AC90- 264V(t47- 63Hz),80W||Mass||22 Kg|
|Ground||D type grounding|
