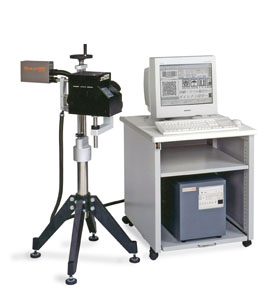

Ink Jet Printer JET HQ500

Letters, bar codes and graphics are printed at super high resolution of 500dots.



ink jet printer JET HQ500









<Features>

●High quality Ink Jet Printer with piezo method.
●Letters and graphics up to 70mm height can be printed at super high resolution of 500 dots.
●Adopted liquid pigment enables sharp edge of printed objects and strong bonding of pigment. This I suitable to bar codes etc.
●Creating printing data and changing settings are easily done by PC system.
●Printing settings can be changed by external signal. Then it has high performance at high-mix low-volume production.
●Much lower cost than labeling and pre-printing.
●New colors were released in July. 2002. Color printing became available. Cinnabar was joined in Sep. 2003.

On demand piezoelectric element system products list of our company

   ■JET HQ256    256dots super high quality printing
   ■JET HQM      Best seller of this series(32/128dots)
   ■JET HQE      Popular machine with one head fixed
   ■JET HQC      Low cost all in one type


●Piezoelectric element is an element which expands and contracts according to electrical potential. Ink is ejected by controlling electric potential on this element.
●Ink is always held at nozzle balancing between gravity and tank. Surface tension prevents leaking of ink.
●With electric potential, piezoelectric element contracts and ink is drawn in and it will be ejected when the element recover its size.
●Piezoelectric element doesn't move mechanically but expands and contracts slightly by electric potential. Ejection hole is very small as 50um and drops of ejected ink are very small accordingly. This enables to keep dots sizes no more than 1mm at printing.
●These features minimize usage of ink and realized beautiful printing without blur.
●Nozzles of number of control channels are in line on a head. 1-7 holes are on a nozzle. We prepare many kinds of 32-500 channel heads.
●High speed controlling of piezoelectric element at 10 KHz enables consistent printing even at a high speed production line. And low abrasion achieved long life of head.
●New type head of our company made adopted and even advanced system which improved following points.
(1)Check bulb is equipped inside of head and crash resistance and vibration resistance are dramatically improved. Installation on conveyer line is more assured than before.
(2)Dual ink feed system is adopted to ink channel to secure ink quantity. This results in more stable printing at high speed production line.
(3)In order to prolong life of head, sealing material and ink are secluded by thin layer between piezo piston head and ink.
(4)Head is smaller than conventional ones



Explanation of inks

<New color ink was released for JETHQ500> (Cinnabar for our company's HQ500 in 2003.9 was newly released.)
●Red, Blue, Green and Cinnabar are available for our company's JETHQ500 type which can print pictures, bar codes and logo freely at super high resolution of 500 dots in lengthwise direction.
●Including conventional black, there are 5 choices of colors. Inks are all oil base pigment which gives sharp vivid printing. Together with conventional black, 5 colors are available. Each ink is oil base and has clear and blight.

Printed sample



●ITF, JAN, Code39, EAN128 bar codes and 2 dimensional QR code can be printed.
●Variable data such as date or numbering can be expressed as bar code in real time.
●Logo and graphics can easily be printed by bit map file reading function.
●Fonts are freely selected on PC.



Specifications
Printing method Piezo ceramics drive drop on demand
Nozzle alignment 500 nozzle single hole/nozzle
Ink Oil base pigment ink
Ink color Black, red, blue, green
Maximum line speed 67m/min at density 1 horizontal speed of 180dpi
Letter height 70mm fixed
Maximum horizontal dot number 15000dots
Resolution Vertical 500dot/70mm≒180dpi Horizontal 180dpi
Ink eject direction Transversal, downward

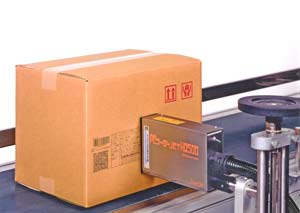

Printing objects Cartons, paper, wood, other poromeric materials
Capacity of main tank 750ml
Number of heads Maximum 4 heads can be connected to one controller
Data input Full key board and mouse
Display 17 inch CRT
Number of message Unlimited (Depend on HDD capacity)
Maximum number of letters for one message Up to 15,000 horizontal dot number
Letters JIS first and second standard, user drown bit map file
Fonts Ming-cho, Block, others
Editor for print data creation Numbering, setting watch function, paste BMP file, etc
Numbering capability Maximum 8 lines, up/down, carry, adjustable numbering interval
Date, Time (Exp. Date) capability Dominical year, imperial era name, Year-month-date, free format,
Bar code printing EAN128, ITF, Code39, JAN, NW-7, QR Code
RS-232C 1ch, Maximum communication speed of 115,200bps
Use environment 5-35oC 10%-80%RH (No dew condensation)
Power No more than AC100V±10% 50/60Hz 8A
Air source Not required

Editor
●Familiar Microsoft Windows(R) is adopted for easy use.
●Soft ware is our own made and quick response is available.
●Graphics can be imported. And actual printing can be checked during operation.
●Data of print settings are stored in a file and can be loaded to be printed or revised at any time.
●Printing data of JET HQ256 can be revised directly from PC. External input can adapt printing system to switching products on the line.
