Ink Jet Printer JET HQM

A New Standard for High-Quality Ink Jet Printer

ink jet printer JET HQM From the head to the controller, everything on the coder is developed in house.
We are always here and ready to meet your various needs.
From the head to the controller, everything on the coder is developed in house.
We are always here and ready to meet your various needs.
ink jet printer JET HQM

<Features>

Experience the beauty of 128ch-head printing.

  • Capable of clear and sharp printing of even small-sized Chinese characters, this coder can be used to print directly on cardboard boxes as a substitute for a label.
  • Prints graphics, such as logos and cautionary signs clearly.
  • This coder features flexible character settings, including character and line spacing capability, which allows for easy inspection with a camera.

32ch-head can print high definition characters at a high speed.

  • Can work with a high speed conveyor line exceeding 100m/min.

  • Character heights and resolution can be adjusted for various purposes by slanting the print head.
  • The ability of this coder to print a wide range of information reduces storage costs for cardboard boxes, since it eliminates the need to store boxes separately by their content.

Designed for maximum ease of operation, this coder is easy to use even for a first timer.

  • This coder comes with a 10.4” VGA color LCD front touch panel, whose viewing angle can be adjusted for optimal viewing.
  • The software for this coder is designed to be used intuitively, so editing the printing data is a piece of cake, even for beginners.
  • PC card and built-in Ethernet make it easy to change and back up the printing data.
  • This coder, which can be controlled by using the I/O signals from a PC or sequencer or by using RS-232C/422 serial communication, helps systematize production line manufacturing.

We value end-user feedback.

  • We are always endeavoring to maximize ease of operation by paying attention to the minute details, some results of which are front-loadable controller filter, and maintenance switch on the print head and ink reservoir.

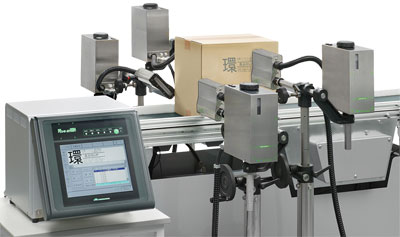

  • Since up to four ink heads can be controlled independently, this coder is especially cost-effective when used in a factory with multiple production lines. This design also facilitates data management and model change.
  • The photoelectric sensor on the coder has a built-in filter circuit (ON/OFF delay, one-shot) that prevents false error detection that results from the pre-printed materials on boxes or deformed boxes.
  • Each of up to four heads can be independently controlled by the controller.
ink jet printer JET HQM

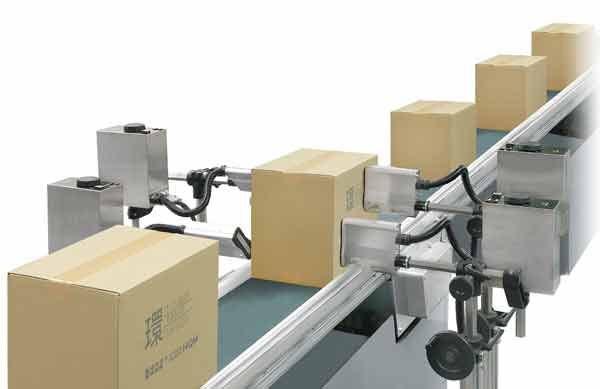

▲The ability of this coder to print a wide range of information reduces storage costs for cardboard boxes, since it eliminates the need to store boxes separately by their content.


ink jet printer JET HQM  controller
HQM Controller

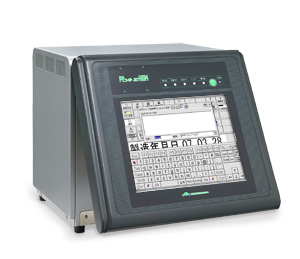

Panel angle can be changed from 0 to 45
°in 5 degree increments.The stylus pen (supplied) allows smooth and easy input.



Sample printed


▼Character height is changeable by adjusting the print head angle and changing the settings on the setup menu.  Character height 64.5mm(MAX)

■Uses a piezo system printhead for 128 dots
ink jet printer JET HQM sample 128ch
* The printing sample is not size of the original.
■Uses a piezo system printhead for 32 dots
ink jet printer JET HQM sample 32ch
* The printing sample is not size of the original.

Specifications
Printing method Piezo-ceramics-driven drop-on-demand type
Nozzle alignment 128 nozzles, 1 hole/nozzle 32 nozzles, 1 hole/nozzle
Maximum printing area Height 1〜64.5mm(with the head turned and semi-fixed) Height 1〜40.0mm(with the head turned and semi-fixed)
Width  〜7620mm(with the head in the vertical position and horizontal scaling at 100%) (varies with printing conditions)
Ink ejection direction Horizontal/Downward Horizontal/Downward/Upperward
Printable surfaces Cardboard, paper, wood, and other porous materials
Maximum printing speed 152 m/min. (Darkness Level 1) 〜 76 m/min. (Darkness Level 2)
No. of print heads

1〜4(Maximum head cable length: 20 m)

Box position detection

Built-in photoelectric sensor on the head, external photoelectric sensor, external contact input

Restrictions on the number of lines None
No. of storable messages 999 messages/head max. (depends on the CF card memory size)
Character type Alphanumeric characters, Hiragana, Katakana, JIS 1st/2nd level Chinese characters
Font Gothic, Mincho, OCR characters, European characters, 1 〜128 dots
Time/Date printing

Year (Western/Japanese), Month, Date, Time (24H/12H), Minute, Second, Day, Week number, Date number, AM/PM

Offset setting, Character justification function
Number printing

8 digits max., Numbering in ascending/descending order, Repetitive numbering, Incremental numbering, Zero suppress, 1-byte/2-byte character option

Barcode ITF,CODE39,JAN,QR ITF,CODE39
Graphics BMP files, straight lines, rectangles, circles

Input/output interface

PCMCIA(TYPEU),Ethernet(10Base-T/100Base-TX),RS232C/422, Exclusively designed I/O, Encoder (Line receiver)

Operating environment 5〜35゚C 10〜80%RH(non-condensing)
Power supply AC100V±10%  50/60Hz 300W(MAX)

Grounding

Class-D
Specifications are subject to change without notice.
